Overnight Connector Harnesses for Survey Equipment

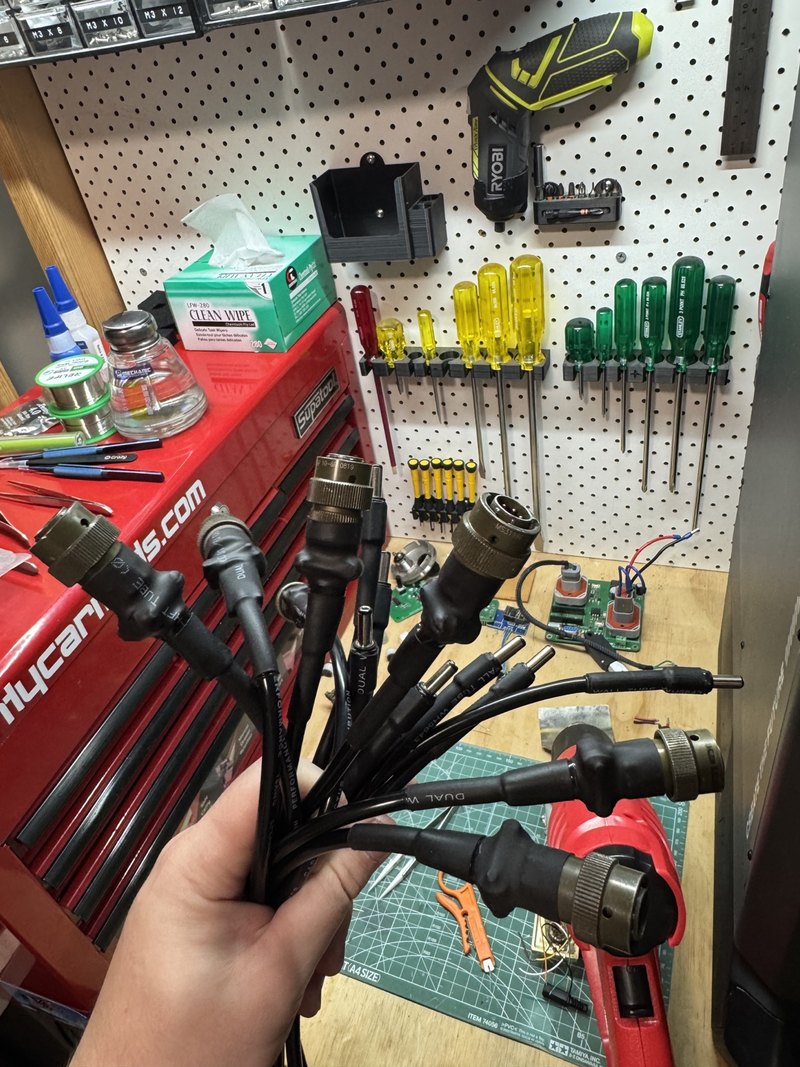

Six mil-spec connector harnesses reverse-engineered, built, tested, and ready for next-morning dispatch.
TL;DR: A geophysical survey equipment client needed six replacement connector harnesses for a mobile equipment charging station. With only a damaged sample cable available, the harness design was reverse-engineered, parts were sourced, and six tested cables were completed overnight for next-morning dispatch.
Problem
A geophysical survey equipment client needed six replacement cables made for one of their mobile equipment charging stations. The available reference was part of a damaged cable, and the completed harnesses needed to be ready the next morning so they could be sent by air freight to site.
Constraints
- Turnaround: The cables needed to be reverse-engineered, built, tested, and ready for pickup the next morning.
- Reference sample: Only part of a damaged cable was available to work from.
- Quantity: Six replacement harnesses were required.
- Connectors: Mil-spec style circular connectors were required for the equipment interface.
- Use case: The cables were for mobile field equipment, so correct wiring and reliable assembly mattered.
Approach
The work started by inspecting the damaged sample cable and determining the required connector arrangement, cable layout, and wiring. Once the design was understood, the required parts were sourced, the six harnesses were assembled, and each cable was checked before handover.
Checks
| Check | Purpose |
|---|---|
| Reference cable inspection | Understand the connector arrangement and cable construction from the damaged sample |
| Pinout confirmation | Ensure each conductor was terminated to the correct connector position |
| Continuity test | Confirm each required connection was present end-to-end |
| Short check | Confirm adjacent pins and conductors were not bridged |
| Mechanical inspection | Check connector assembly, strain relief, insulation, and cable finish |
Result
All six harnesses were completed inside the overnight turnaround window, tested, and ready for pickup the next morning. The customer confirmed the cables worked and was pleased with the result.
Takeaway
Small harness jobs can still carry real project risk when the timeline is tight and the only reference is a damaged part. Clear reverse-engineering, suitable parts, careful assembly, and basic electrical checks are what make a fast replacement job reliable.
